Using the Pro 4 hood

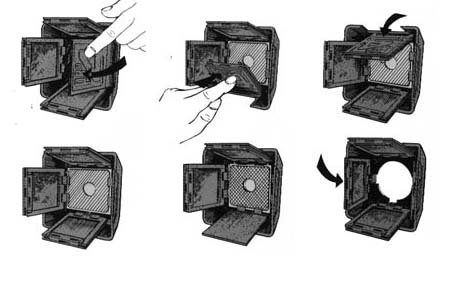

To put one filter in front of the lens, push the finger plate across the lens until filter clicks into place. Left
To put a second filter over the top of one of the first do the same thing with one of the two filters on either side of the filter already inserted. Centre
To release the filters just press the opposite finger plates in a little way. Right

Installing the Pro 4 Hood

How you load filters into the Pro 4 hood

The filters are mounted into flexible nylon frames - simply slip the filter in the bottom claws and bend the top of the frame between your finger and thumb over the top of the filter. It only takes a moment.

Pro 4 filters should be loaded with the lettering on the top left hand corner as you load. If you are loading oblong filters the distance between the claws is 68mm.

The Pro 4 hood is now operational and all of the four filters in the hood are ready for instant use.

How you fit the Pro 4 Reflex hood to the camera

Fit the adapter ring onto your camera lens first.
Slide the Pro 4 hood over the adapter ring making sure that the three clamps engage and click into place.
