The natural, logical evolution of Contax's classic camera range, the G1
combines the best and most important features of SLR, compact and rangefinder
camera technology, to provide an instrument that is supremely easy to use,
versatile and discreet.
With a solid aluminium chassis and highly durable titanium body in the true
tradition of the great camera maker's art.
Autofocus Carl Zeiss T* interchangeable lenses give you results so excellent
that Joel Lacey, Technical Editor af Amateur Photographer commented in a
recent test, "All in all, a wonderful ensemble performance."
G1
- Auto or manual focus with focus confirmation.
- Interchangeable Carl Zeiss lenses.
- Centre weighted TTL metering via accurate SPD cell.
- Aperture priority, manual exposure, TTL auto flash or manual flash
modes.
- Precision die-cast alloy chassis and titanium body covers.
- Automatic bracketing control.
- Real image finder automatically changes angle of view when coupled
with selected lens.
- Automatic parallax correction.
- Comprehensive finder data display.
- Built-in eyesight adjustment
- Automatic film load, wind and rewind.
- Single frame, continuous or multiple exposure modes.
- 1/2000 fast shutter speed and 1/100 flash synchronisation.
- Optional data back imprints date and/or time.
- Optional dedicated flash available
Contax G1 - the modern evolution of the classic camera concept
The new Contax G1, introduced at Photokina 1994, combines the best of modern
SLR technology with the classic benefits of the rangefinder camera, to provide
an instrument which is quiet and unobtrusive, fast and convenient like a
modern compact. Its interchangeable Carl Zeiss lens system offers superb
optical flexibility and performance.
During the years since Contax last produced rangefinder cameras, the world
of photography has changed, thanks to the great advances in SLR camera technology.
These advances include automatic TTL exposure control in ambient and flash
light, motorised film handling, automatic film speed setting and perhaps
the greatest impact has been accomplished by autofocusing.
Like its predecessors of earlier decades, such as the Contax IIa and IIIa,
the Contax G1, by incorporating the latest technology, sets new standards
for rangefinder cameras.
Four dedicated Carl Zeiss interchangeable lenses have been developed specially
for the G1 and are the result of the application of latest optical technology
and computer aided lens design. In addition, the Contax G1 is able to utilise
Carl Zeiss lenses from the Contax SLR range, by means of an adaptor.
With the performance and versatility of an SLR, at a fraction of the size
and weight, the Contax G1 can be expected to become a modern classic.
Available immediately from selected photographic dealers, the Contax G1
is expected to sell for around £1450 for the body and standard Carl
Zeiss Planar T* 45mm f/2.0. More information about the camera and stockists
is available from Kyocera Yashica UK Ltd., at 4 Bennet Court, Bennet Road,
Reading RG2 0QX, telephone 01734 314141 or fax 01734 311240.
FEATURES OF THE CONTAX G1
The Camera Body
Immensely strong, elegantly styled and perfectly finished.
The camera chassis is formed in copper/silumin alloy, the body covers are
manufactured in titanium alloy finished to a silver lustre colour and the
lens mount is stainless steel.
The Viewfinder
Real image, linked to lens in use, with automatic parallax correction.
Unlike viewfinders of previous technologies, the G1 has no distracting bright
lines. All essential data is shown on an LCD panel below the viewfinder
image. Eyesight correction is built in and a clip on viewfinder is available
for the Hologon 16mm f/8.
Exposure Metering
TTL, centre weighted average, for ambient and flash light.
Just like Contax's top SLRs, now TTL metering is available on an interchangeable
lens rangefinder type camera. When the Hologon 16mm f/8 is fitted, the G1
switches to external metering, because the rear element is too close to
the film plane to allow TTL metering.
Exposure Control
Choose from aperture priority automatic or manual metered exposure.
As you would expect from a Contax system camera, exposure compensation and
automatic bracketing are standard features of the G1.
Focusing
External, passive auto focusing system or manual focus with electronic
sharp focus confirmation.
The stepless auto focus measurement has low light assistance, AF lock, and
is extremely accurate, due to an extra-long base length.

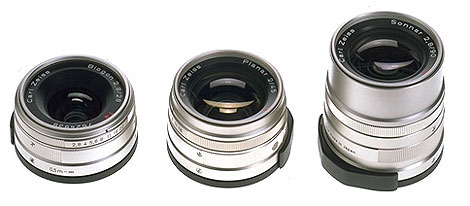

CONTAX G1 ACCESSORIES
One of the greatest advantages of a rangefinder camera is the freedom given
to optical designers to develop lenses which are not restricted by a reflex
mirror, as in an SLR. The four new, high performance Carl Zeiss lenses for
the Contax G1 are free from the compromises that are necessary in an SLR
design. From the ultra wide 16mm Hologon f/8 to the classic Sonnar 90mm
f/2.8, the optics offer ultimate image quality and compact size, to ensure
that they will provide the professional with effective working characteristics.
Carl Zeiss HOLOGON T* 16mm F/8
Based on the traditional Hologon ultra wide angle lens, originally developed
by Dr. Erhard Glatzel, the Hologon T* 16mm f/8 is an advanced, virtually
distortion-free wide angle lens of outstanding performance, designed specially
for the Contax G1. To compensate for fall-off of illumination towards the
edges of the frame caused by the extreme angle of view, 106 degrees, a Contax
centre filter is provided as standard equipment. Having such a short focal
length and a fixed aperture of f/8, the extreme depth of field of the Hologon
will allow use pre-focussed. Its ultra wide angle will be particularly attractive
for architectural, advertising, fashion or scenic photography. Wherever
they appear, Hologon images will command special attention.
Carl Zeiss BIOGON T* 28mm F/2.8
Originally developed by Dr. Ludwig Bertele, the Biogon design was regarded
as a milestone in the history of photographic optics. The recomputation
of this symmetrical lens for the G1 brings its performance right up-to-date
and it will be particularly noteworthy for its extremely low distortion
characteristics.
Carl Zeiss PLANAR T* 45mm F/2
Equivalent to the format diagonal, the focal length of the G1 standard lens
gives a natural perspective. Like the other lenses, it has been recomputed
for the G1 and its quality lives up to the famous tradition of the Carl
Zeiss SLR standard lenses.
Carl Zeiss SONNAR T* 90mm F/2.8
This compact lens is noted for the razor sharp, brilliant images it produces,
as well as uniform illumination across the frame, even at full aperture.
The angle of view of 27o suits the Sonnar particularly for scenic and portrait
photography.
Contax G1
Camera Specifications
- Type 35mm AF rangefinder camera with focal plane shutter
- Image size 24 x 36mm
- Lens mount CONTAX G mount
- Shutter Electronicallly controlled vertical travel focal plane shutter
- Shutter speeds 16 secs to 1/2000 sec at Aperture Priority AE, Manual
mode 1 sec to 1/2000 sec plus B and X (1/100 sec)
- Synchronisation contact Direct X contact (synch speeds 1/100 sec or
slower) provided with synch terminal
- Self timer Electronic with 10 second delay, cancellable half way
- Shutter release Electromagnetic, provided with exclusive release socket
- Exposure control 1. Aperture priority AE 2. Manual 3. TTL auto flash
4. Manual flash
- Metering system TTL actual exposure metering (centre weighted average
light metering)/External metering - auto switchover depending on lens in
use
- Metering range EV1-19 on TTL actual exposure metering (ISO 100 f/2)
- EV3-17 on external metering (ISO 100 f/2)
- Film speed range ISO 25-5000 for auto setting with DX film
- ISO 6-6400 for manual setting
- AE lock Shutter speed stored in memory
- Exposure compensation +/- 2 EV in 1/3 EV increments
- A.B.C. mode +/-0.5 EV / +/-1 EV exposure compensating values with
A.B.C. lever
- Flash light control TTL direct control
- Flash synchronisation In combination with the dedicated flash, the
shutter speed is automatically set when the flash is fully charged
- Second curtain synch Possible with Contax flash having second curtain
synchronisation capability
- Focusing Automatic focusing, switchable to manual with focus dial
and electronic focus confirmation
- Distance measurement Extended base length type external passive AF
method, provided with AF low light assist beam and focus lock
- Focus sensing range EV3-19 with ISO100 film. The distance is indicated
in the viewfinder and on display panel
- Viewfinder Real image finder couple to lens in use. 0.57x magnification
and 90% field of view (with 45mm lens at infinity and -1 dioptre correction
set)
- Dioptre adjustment Built in adjustment from +0.3D to -2D
- Viewfinder display Picture area frame with auto parallax adjustment,
focusing frame, focus display, shutter speed, exposure signal, exposure
compensation, flash signal
- Display panel Shooting distance/film speed, drive mode (single frame/continuous
shooting/self timer/multiple exposure), custom function indicator and battery
condition indicator
- Film loading Automatic with auto wind to first exposure
- Film advance Auto with built in motor
- Film rewinding Auto with built in motor, automatic stop/return after
film rewind is completed. Mid roll rewind is possible.
- Drive mode Single frame, continuous, self timer, multiple exposure
- Winding speed Up to approx. 2 frames/second on continuous shooting
mode, with new batteries at normal temperature, as tested according to Contax
standard
- Exposure counter Automatic resetting additive type, A.B.C. display
- Accessory shoe Direct X-contact hot shoe, provided with TLA flash
contact
- Custom functions 1. AE lock operation (activated by pressing shutter
button half way or by turning main switch to AEL position) 2. A.B.C. exposure
order selection (standard > over > under / over < standard <
under) 3. Film end rewinding (complete or with film end left out of cassette)
- Camera back Detachable and provided with film check window
- Power source Two 3 volt lithium batteries (CR-2)
- Battery check Automatic battery warning indicator on display panel
- Dimensions 133 (W) x 77 (H) x 42 (D) mm
- Weight 460 grams without batteries
Contax G1 Data Back GD-1 Specifications
- Type Built in quartz clock with liquid crystal display
- Position of imprint Lower right corner
- Details of imprint 1. Year/Month/Day 2. Day/Hour/Minute 3. None
- 4. Month/Day/Year 5. Day/Month/Year (automatic date correction)
- Film speed setting Automatic
- Power source One 3 volt lithium battery (CR 2025)
- Dimensions 132.5 (W) x 54 (H) x 17.5 (D) mm
- Weight 80 grams without batteries
Carl Zeiss HOLOGON T* 16mm F/8 Specifications
- Construction 5 elements / 3 groups
- Focal length 16.5mm
- Angle of view 106o
- Relative aperture f/8 (fixed)
- Min focusing distance 0.3 metres
- Dimensions 57 x 11mm
- Weight 125 grams
- Std. accessories Clip on viewfinder, centre filter (4x), lens cap,
case
Carl Zeiss BIOGON T* 28mm F/2.8 Specifications
- Construction 7 elements / 5 groups
- Focal length 28.4mm
- Angle of view 75o
- Minimum aperture f/22
- Min focusing distance 0.5 metres
- Filter size 46mm
- Dimensions 56 x 30.5mm
- Weight 150 grams
- Std. accessories Lens cap, case
Carl Zeiss PLANAR T* 45mm F/2 Specifications
- Construction 6 elements / 4 groups
- Focal length 46.9mm
- Angle of view 50o
- Minimum aperture f/16
- Min focusing distance 0.5 metres
- Filter size 46mm
- Dimensions 56 x 38.5mm
- Weight 190 grams
- Std. accessories Lens cap, case
Carl Zeiss SONNAR T* 90mm F/2.8 Specifications
- Construction 5 elements / 4 groups
- Focal length 90.3mm
- Angle of view 27o
- Minimum aperture f/22
- Min focusing distance 1 metre
- Filter size 46mm
- Dimensions 56 x 63mm
- Weight 240 grams
- Std. accessories Lens cap, case
Special Lens Accessories
- Lens hoods for 28mm, 45mm and 90mm. 46mm filters P/1A/UV/A2/B2. Adaptor
for Contax SLR lenses from 28mm to 85mm focal length.
Further System Accessories
TLA Flash
- GN 14 (ISO 100/21o meters) TTL control, coverage up to 28mm focal
length, recycling time approx. 4.8 secs., approx 200 flashes per battery
at full output, power source: one 3 volt lithium battery (type 123).
GP-1 Power pack adaptor and P8 Power pack
- The power pack adaptor is inserted into the battery compartment of
the G1 and allows connection of the P8 Power pack (low temperature power
source) with four AA batteries.
Carrying case
- Standard case GC-11 for use with 16mm, 28mm and 45mm lenses and long
front cover
- CG-112 for use with 90mm lens.
Suggested Retail Prices
- Contax G1 body £1149.99
- Carl Zeiss Biogon 28mm f/2.8 £469.99
- Carl Zeiss Planar 45mm f/2.0 £299.99
- Carl Zeiss Sonnar 90mm f/2.8 £469.99
- Carl Zeiss Hologon 16mm f/8.0 £2099.99
- TLA-140 Flash £149.99
- Data Back GD-1 £149.99
- Mount adaptor GA-1 £169.99
- Filter 46mm Protection £39.99
- Filter 46mm 1A MC £44.99
- Filter 46mm L39 (UV) MC £44.99
- Filter 46mm A2 (81B) MC £44.99
- Filter 46mm B2 (82A) MC £44.99
- Metal hood GG-1 for Biogon 28mm f/2.8 £24.99
- Metal hood GG-2 for Planar 45mm f/2.0 £24.99
- Metal hood GG-3 for Sonnar 90mm f/2.8 £34.99
- Metal cap 57mm GK-54 £24.99
- Power pack adaptor GP-1 £44.99
- Standard case GC-11 £99.99
- Front cover GC-111 £59.99
- Front cover long GC-112 £69.99
- Body case GC-110 £44.99
- Body cap GK-B £5.99
- Strap G-1 £19.99
- Lens cap 46mm GK-41 £8.99
- Lens rear cap GK-R1 £2.99
- Lens rear cap GK-R2 £2.99
- Lens case GCL-1 £14.99
- Lens case GCL-2 £14.99
Note that all specifications and prices are subject to change without prior
notice.
E & OE
G1 Review in Photon June 95
Back to Contax Index
Back to Photon Main index
Back to Advertisers Index
